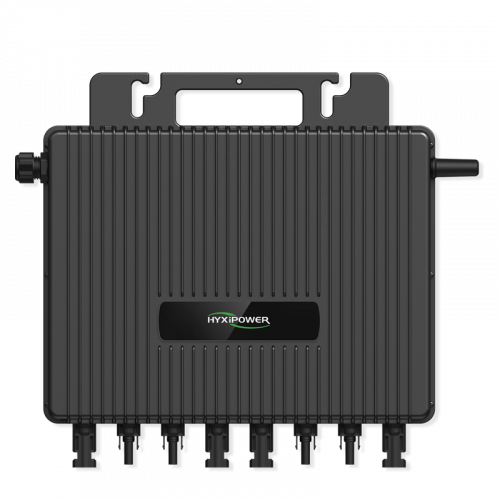

HYXiPOWER HYX-M2000-SW 2000W Wi-Fi Solar Microinverter

The HYXiPOWER HYX-M2000-SW 2000W Solar Microinverter is a high-performance solar power conversion device designed for grid-connected photovoltaic systems. With a maximum output power of 2000W, four independent Maximum Power Point Tracking (MPPT) channels, and integrated Wi-Fi communication, this microinverter provides a flexible solution for residential and commercial solar installations.

Unlike traditional string inverters that manage multiple solar panels through a shared conversion unit, the HYX-M2000-SW connects to up to four compatible photovoltaic modules. Its four-in-one architecture combines the benefits of module-level power management with a streamlined installation design.

For homeowners, businesses, and solar installers in Kenya, this HYXiPOWER microinverter offers an option for building modular solar systems with remote monitoring capabilities and efficient energy conversion.

Key Features of the HYXiPOWER HYX-M2000-SW

• 2000W maximum output: Designed for solar installations requiring up to 2000W of AC power output.
• Four-in-one design: Supports connection to four compatible photovoltaic modules.
• Independent MPPT technology: Helps optimise power extraction from individual connected solar modules.
• Integrated Wi-Fi monitoring: Enables communication with the compatible HYXiPOWER monitoring platform.
• High conversion efficiency: Manufacturer documentation specifies peak efficiency of up to 96.7%.
• IP67-rated enclosure: Provides dust protection and protection against temporary water immersion under specified testing conditions.
• Low startup voltage: Features a specified startup voltage of 20V.
• Outdoor-ready construction: Designed for operation within the manufacturer’s specified environmental conditions.

Efficient Solar Power Conversion

Solar panels produce direct current (DC) electricity when exposed to sunlight. Most conventional electrical appliances and grid-connected installations require alternating current (AC). A solar inverter converts the electricity generated by photovoltaic panels into a form suitable for the connected electrical system.

The HYXiPOWER HYX-M2000-SW performs this conversion with a maximum output rating of 2000W. Its four-in-one architecture allows several solar modules to connect to a single microinverter while retaining independent MPPT control for each input channel.

This design can help simplify solar installations by reducing the number of separate microinverter units required compared with certain individual-panel configurations. The final system layout must follow the manufacturer’s electrical specifications and the applicable installation requirements.

Actual solar energy production depends on panel capacity, sunlight intensity, shading, temperature, orientation, and other system conditions.

Four Independent MPPT Channels

Maximum Power Point Tracking, commonly known as MPPT, is an important technology used in solar power systems. It helps each photovoltaic module operate at a suitable voltage and current combination to extract available power as sunlight and temperature change.

The HYX-M2000-SW features four independent MPPT channels for managing connected solar modules. This arrangement helps accommodate differences in module performance and operating conditions.

For example, if one panel receives less sunlight than the others, its performance can be managed independently through its corresponding MPPT channel. This can be useful for installations where roof conditions vary or where partial shading affects individual panels.

For optimal operation, each connected module must comply with the inverter’s voltage, current, and short-circuit current limits.

Smart Wi-Fi Monitoring

Monitoring allows solar system owners to understand energy production and identify possible performance issues. The HYXiPOWER HYX-M2000-SW incorporates Wi-Fi communication to connect with the manufacturer’s compatible monitoring platform.

Depending on the system configuration and supported software, users can view operating information and monitor the performance of connected solar modules. Installers can use the available data to help identify abnormal operating conditions and support maintenance activities.

Remote monitoring can be particularly useful for homes, offices, shops, and other commercial properties where regular physical inspection may be inconvenient.

A compatible network connection and correct system configuration are required to use the monitoring functions. Wi-Fi coverage should be checked before installation.

Durable IP67-Rated Design

Solar equipment installed outdoors must be suitable for changing weather conditions. The HYX-M2000-SW features an IP67-rated enclosure designed to protect against dust and temporary water immersion under specified testing conditions.

This rating supports outdoor use when the microinverter is installed according to the manufacturer’s requirements. Appropriate mounting, cable routing, connector installation, and electrical protection remain essential.

The manufacturer’s documentation specifies an operating ambient temperature range of approximately -40°C to +65°C. Actual installation suitability depends on the exact model variant and its approved operating conditions.

Applications in Kenya

The HYXiPOWER HYX-M2000-SW can be considered for compatible grid-connected solar installations in Kenya.

Residential solar systems: Suitable for appropriately designed rooftop solar installations supplying electricity to compatible household electrical systems.

Commercial premises: Can form part of solar installations for offices, retail shops, and other businesses seeking to use solar-generated electricity.

Rooftop photovoltaic systems: The four-in-one architecture supports installations requiring coordinated management of several solar modules.

Modular solar projects: Multiple microinverters can be incorporated into larger systems when the design meets manufacturer specifications and applicable electrical regulations.

Solar monitoring applications: Integrated Wi-Fi communication supports monitoring through the compatible platform.

The HYX-M2000-SW is a grid-connected microinverter, not a standalone battery inverter. Maintaining power during a grid outage requires an appropriately designed system with compatible backup equipment.

Installation and Compatibility

Before purchasing the HYXiPOWER HYX-M2000-SW, confirm compatibility with your photovoltaic modules, local grid requirements, wiring, and electrical protection equipment.

The manufacturer’s documentation specifies a maximum DC input voltage of 65V, an MPPT voltage range of 16–60V, and a startup voltage of 20V. Each connected module must remain within the applicable input current and short-circuit current limits.

Installation should be carried out by a qualified solar technician following the manufacturer’s instructions and applicable electrical regulations. Correct grounding, protective devices, AC connections, and grid commissioning are essential for safe operation.

Why Choose the HYXiPOWER HYX-M2000-SW?

The HYXiPOWER HYX-M2000-SW combines 2000W-class power conversion, four independent MPPT channels, Wi-Fi monitoring, and an IP67-rated enclosure. Its four-in-one architecture offers a practical option for appropriately designed solar systems requiring module-level management with fewer conversion units.

For customers seeking a smart microinverter for residential or commercial solar applications, this model provides flexibility, monitoring capabilities, and a compact approach to solar energy conversion.

Buy the HYXiPOWER HYX-M2000-SW in Kenya

Alynet Solutions provides technology products for residential and commercial customers in Kenya. If you are planning a solar installation, choosing compatible panels, microinverters, cabling, and protective equipment is essential for dependable operation.

Contact Alynet Solutions to enquire about the HYXiPOWER HYX-M2000-SW 2000W Wi-Fi Solar Microinverter, availability, pricing, and compatibility with your planned solar project.

Choose suitable solar conversion equipment to help you make effective use of available sunlight and build a solar installation tailored to your energy requirements.
